With the Z1 the intent was to deliver the most portable CPAP machine available. At 45% lighter and 37% less volume than the closest competitive device. We think we achieved what we set out to do: Reinvent CPAP
Z-Breathe. More natural breathing.
One of the greatest issues cpap users complain about is the difficulty in exhaling against the pressure exerted by the cpap machine. The Z1 cpap machine uses our proprietary Z-Breathe algorithm that learns from your breathing pattern and relieves machine pressure on exhalation.
Z1 Features and Benefits
Very Quiet The Z1 only makes 26 dBA of sound during operation. By cpap industry standards that is considered to be exceptionally quiet. In fact, the Z1ÃƒÆ’Ã‚Â¢ÃƒÂ¢Ã¢â€šÂ¬Ã…Â¾Ãƒâ€šÃ‚Â¢ is one of the quietest machines on the market.

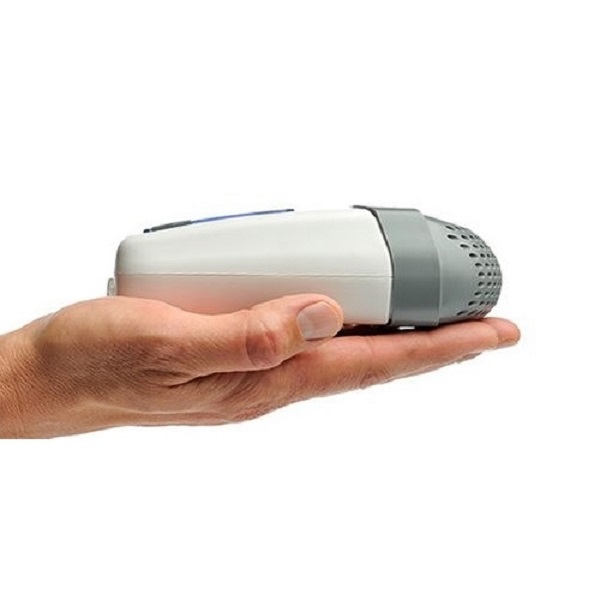

Extremely LightThe Z1 is the lightest cpap machine available anywhere. At only 10 ounces it is a great everyday machine that is also ideal for travel.
Optional Integrated BatteryThe Z1 has an optional integrated battery system that we call the PowerShell. It delivers a full night of cord-free power on a fully-charged battery.
Data CapableThe Z1 is data-capable and records all information on events and compliance. With our free software, data is presented in a user-friendly interface where you can track your progress.

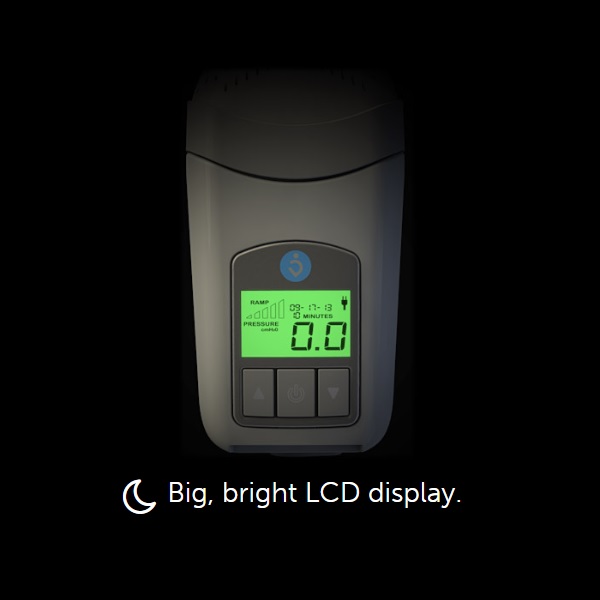

Big, Bright LCD DisplayThe Z1 has a large backlit LCD display so that you always know what is going on with your session. The Auto-off function puts the display backlight to sleep. Displays pressure setting, ramp time and progress, power status and more. Gives you visual feedback when programming ramp and pressure settings.
<ul><li>Operating Pressure Range: 4 to 20 cm H<sub>2</sub>O</li>
<li>Sound Pressure Level: 26dBA </li>
<li>Deliverable Pressure Accuracies: ±0.6cm H<sub>2</sub>O</li>
<li>Dimensions (L X W X H): 6.5" X 3.3" X 2";165 x 84 x 50mm</li>
<li>Weight: 10oz; 284g </li>
<li>30W Power Supply Unit: Input range 100-240V, 50-60Hz, 30VA (typical power consumption, >70VA (Maximum power consumption</li>
<li>humidity: 10-95% non-condensing</li>
<li>Altitude: Sea level to 2,591m</li></li></ul>
<li>Storage and Transport:
<ul><li>tempurature:-20 to +60°C</li>
<li>humidity: 10-95% non-condensing</li></ul></li>
<li>Available Modes: Standby, CPAP and CPAP with ramp</li>
<li>Housing Construction:Flame retardant engineering thermoplastic</li>
<li>Supplemental Oxygen: Not for use with oxygen</li>
<li>Air Outlet: The 22mm conical aire outlet complies with ISO 5356-1</li> <li>Electromagnetic Compatibility: Compatible with IEC 60601-1-2.</li>
<li>IEC 6060-1 Classification: Class II (double insulation), Type BF</li></ul>
The Z1 system comprises the following elements:<ul><li>Z1 APAP Device</li><li>48" Slim Style CPAP Tube</li><li>CPAP Tube Adapter</li><li>30W power supply unit</li><li>USB A to Micro B cable</li><li>End cap</li></ul>
The manufacturer recommends that new patients purchase their devices, masks and initial accessories from a homecare company that can provide an individualized patient equipment setup, clinical and after-sales support, and a program to assist patients with therapy success.
CPAP Clinic meets this set of requirements by providing you with the following services:
at-home visit for personal assistance and training
unlimited toll-free telephone support before and after sale
unlimited email support before and after sale
appropriate CPAP and Auto-CPAP set-up according to prescribed pressure setting
